Conveyor Belt Fasteners-------2-6mm mini type belt fastener
	The Conveystar min. type systems include : ·R1 ·R2 ·R3
MODEL BELT THICKNESS BELT TENSION MIN.PULLEY DIAMETER R1 1.0-3.5 250 Φ50 R2 3.0-3.5 400 Φ75 R3 5.0-6.0 500 Φ100

The 2-6mm mini type belt fastener for industry. The main applications are:

.Distribution Centres                              .Laundries                              .Food Industry

.Filter Press Industry                             .General Industry

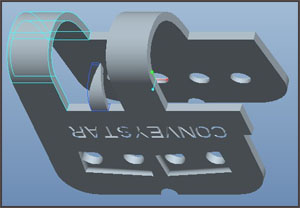

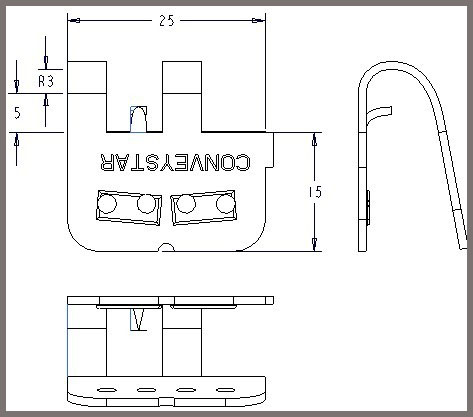

     For use with modern lightweight, high-strength belting. Designed to operate smoothly over slider bedtroughing conveyor applications.The Conveystar 2-6mm mine type belt fasteners is a very strong belt fastener; hinged plates are held in compression with high-tensile stainless steel staples. A unique feature of this style of product, compared to conventional lightweight belt fasteners, is that the staples are clinched 90 degrees to the direction of the pull of the belt.


      Therefore, it is virtually impossible for the staple to open under load. The staples are also unique. While other brands may be rectangular, with their narrow dimension in line with the pull of the belt, The Conveystar 2-6mm mine type belt fasteners are oval shaped with smooth, rounded edges. This design feature reduces the possibility of the staple damaging belting fabric.
